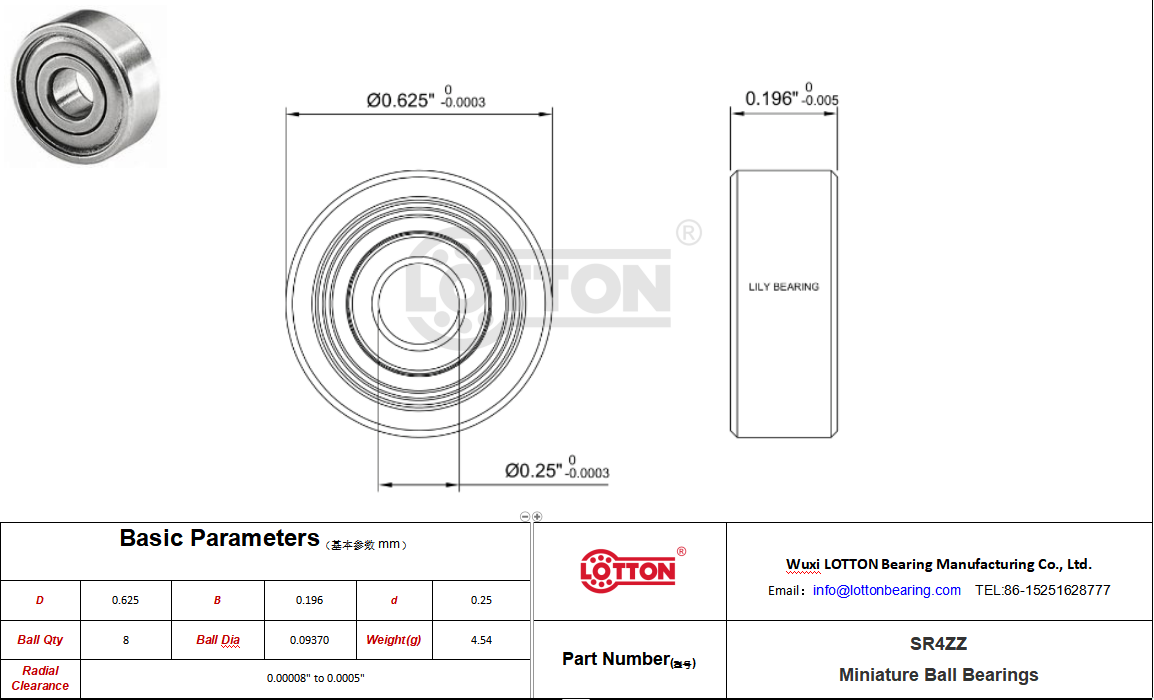

| Product Number | SR4ZZ Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | metal dust cover |
| Bore Dia | 0.25 |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.625" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width(B) | 0.196" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Dynamic Radial Load | 255lbf |
| Static Radial Load | 101 lbf |
| Max Speed (X1000 rpm) | 34.2 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.09370" |
| Ball Qty | 8 |
| Weight | 4.54g |
| Inner ring type | Standard type |
| NMB | DDR-4ZZ |
| GRW | SS1/4A-2Z |
| McMaster-Carr ABEC5 | |
| NHBB | SSR-4ZZ |
| EZO | SR4ZZ |
| McMaster-Carr ABEC7 | 3759T58 |
| DYNAROLL | SR4ZZ |
| FAG | SR42Z |
| RMB | |
| MPB | SR4CHH |
| LOTTON | SR4ZZ |
| McMaster-Carr ABEC1 | 6138K54 |
| BARDEN | SR4ZZ |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | EZO | BARDEN | NMB | McMaster-Carr ABEC7 | NHBB | McMaster-Carr ABEC1 | GRW | MPB |
SR4ZZ | SR4ZZ | SR4ZZ | SR4ZZ | DDR-4ZZ | 3759T58 | SSR-4ZZ | 6138K54 | SS1/4A-2Z | SR4CHH |
| FAG |
| SR42Z |
