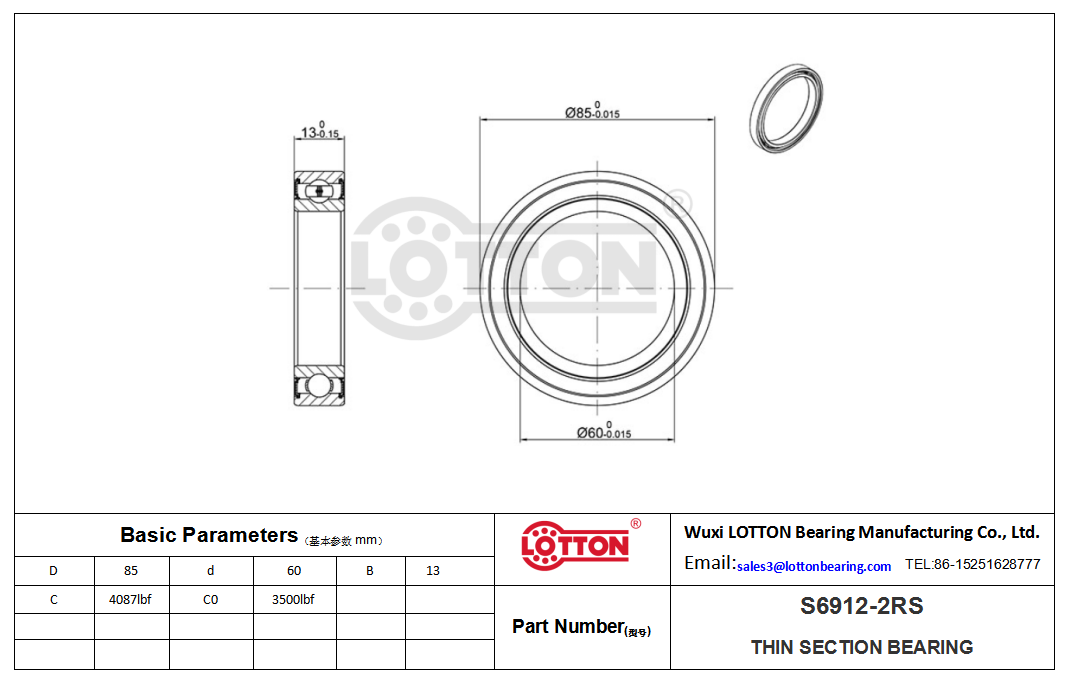

| Product Number | S6912-2RS |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 60 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 85 mm |
| Outer Dia Tolerance | -0.150mm to 0 |
| Width | 13 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 440C Stainless Steel |
| Dynamic Radial Load | 4087 lbf |
| Static Radial Load | 3500 lbf |
| Max Speed (X1000 rpm) | 8.01 |
| Lubrication | Required |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.008mm to 0.028mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 192 g |
