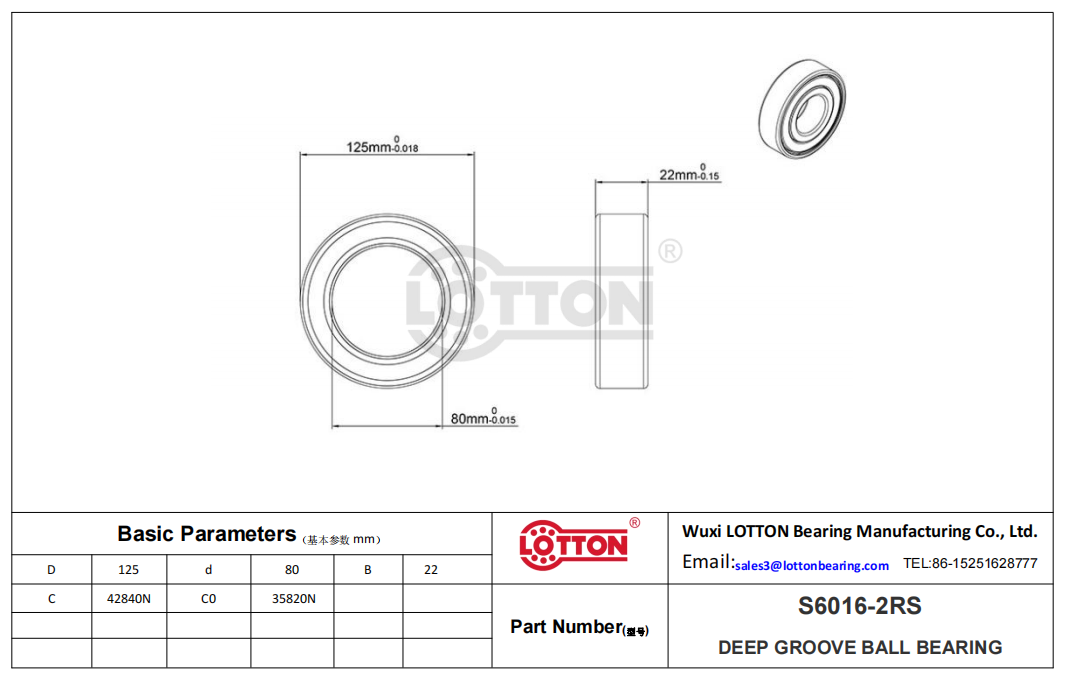

| Product Number | S6016-2RS |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 80 |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 125 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 22 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 42840 N |
| Static Radial Load | 35820 N |
| Max Speed (X1000 rpm) | 4.77 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.01mm to 0.03mm |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 854 g |
