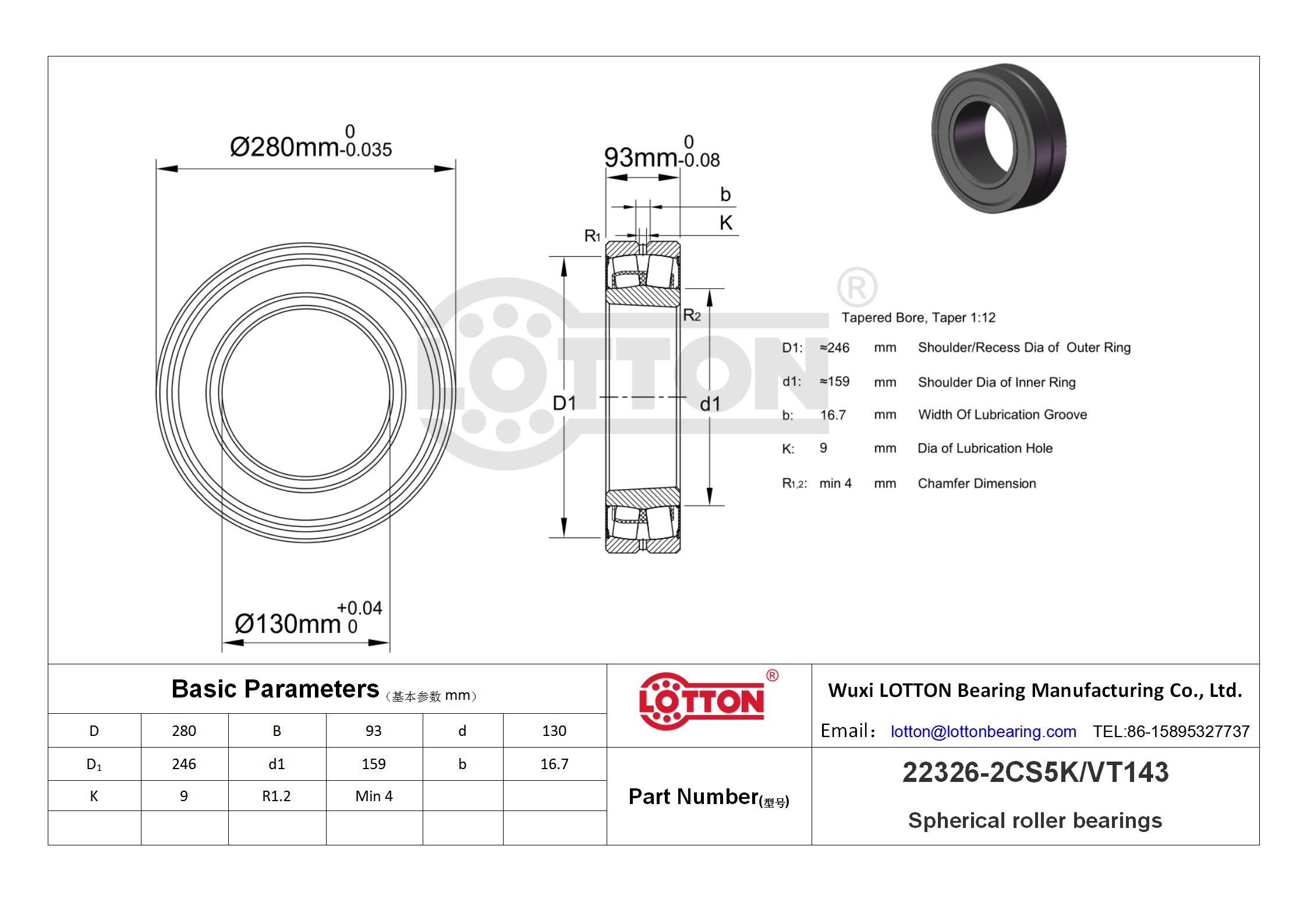

| Product Number | 22326-2CS5K/VT143 |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Tapered Bore, Taper 1:12 |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Row |
| Seal Type | Sealed |
| Bore Dia | 130 mm |
| Bore Dia Tolerance | +0.04mm to 0 |
| Outer Dia | 280 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Width | 93 mm |
| Width Tolerance | -0.08mm to 0 |
| Shoulder Dia Of Inner Ring | 159 mm |
| Shoulder/Recess Dia Of Outer Ring | 246 mm |
| Width Of Lubrication Groove | 16.7 mm |
| Diameter Of Lubrication Hole | 9 mm |
| Chamfer Dimension | min.4 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 1178 kN |
| Static Radial Load | 1320 kN |
| Max Speed (X1000 rpm) | 0.59 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHs | Compliant |
| REACH | Compliant |
| Weight | 28.5 kg |
